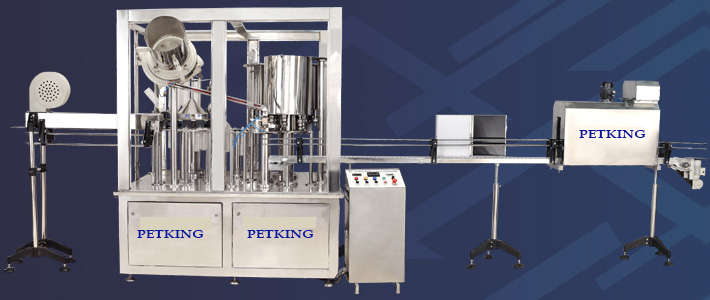

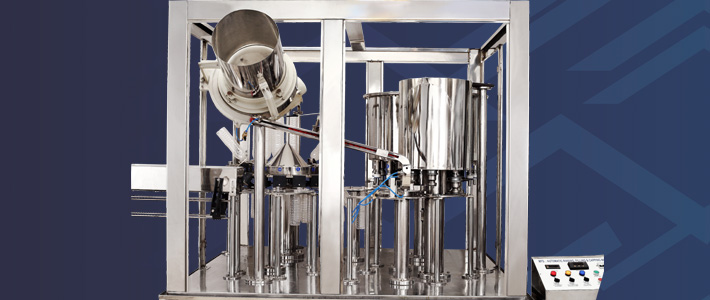

Automatic RFC Machine

Rinser Section

• Rinser top plate made of SS 304.
• Bottle Gripper mounted with UHMWPE bracket.
• Bottle grippers are made of SS 304 with machining for CNC machine.
• Rinser jet valve body is made of SS 304.
• The Opening of the rinsing nozzle is the bottle place over the rinsing jet and turned at 180 degree by a mechanical cam.
• Bottle rinsing with liquid recovery for Re-Use.
• No Bottle no Rinsing arrangement.

Filling Section

• Gravity filling mechanism suitable for room temperature.
• Tank is made of SS 316 with internal polished mirror Finish.
• The Filling nozzle is SS 316 & SS 304.
• No Bottle No Fill arrangement.
• The Filling Nozzle seals are made of Food Grade Silicon rubber.
• The Bottle gripper is made of SS 304.
• Lift Cylinder are made of LM6 Aluminum with PB Material.
• No Change over parts to fill the bottle from 100ml to 2000ml.
• Fast and accurate filling valves.
• The Level of Filling tank is Controlled by Solenoid Valves.

Capping Section

• Capping section suitable for application of screw on caps.
• Hopper for mechanical cap feeder passes the caps into distributors chute.
• Sensors are provided which detect the caps in the chute.
• Individual Cap washing arrangement is fitted on chute.
• No Bottle No Cap system is provided.
• Accurate torque setting for capping head.
