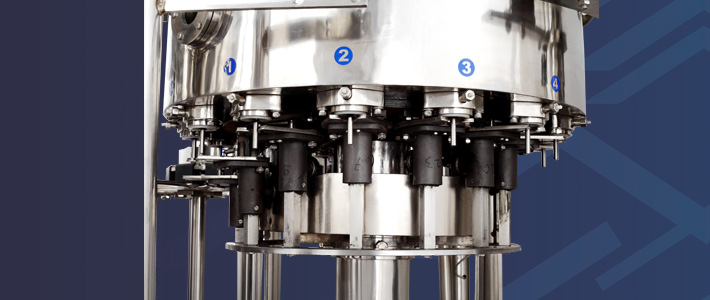

Counter Pressure Rinsing, Filling & Capping Machine (Soda Filling Machine) Capacity 55-60 BPM
- No Bottle No Filling & No Capping.
- Bottle Transfer with neck Holding Type.
- Capper to adjust torque setting arrangement to be provided.
- Pressure guage Mounted on tank top co2 stuffing box is provided with tank.
- No change over parts very low maintenance.
- AC variable speed frequency drive systems.
- Bottom complete SS Doors
Rinser
Filler
Capper
Maximum Speed
Main Body
Housing
Main Tank & Liquid Contacts Parts Are
Infeed Air Conveyor
Outfeed Conveyor
Hopper for Cap Feeding
Main Motor
Main Gear Box
Tank Pressure
C.P. Filler Valve
Valve Open
14 Head Rinse
14 Head Filler
6 Head Capper
55-60 BPM
MS Fabrication with SS Gladding
SS 304
SS 304
8 Feet long 0.5 HP Blower
16 Feet Long ¼ HP Geared Motor
¼ HP Gear Motor
2 HP 1000 RPM make Hindustan
Bonfiglioli make Italy
7kg / cm2
Special Purpose & Accuracy Filling
Pneumatic Cylinder
